Fully automatic OpenStack Cloud installation on "bare-metal"
This HowTo is about how to fully automated provision OpenStack Cloud(s) to bare-metal systems (physical server) with openQRM.
Why do we integrate with e.g. Amazon EC2, Eucalyptus and OpenStack (and some more in the pipeline) ?
Pure Cloud projects normally only care for virtual machine deployment. That means the "Cloud“ is actually something „within“ your datacenter so it needs management and administration in the same way as „regular“ IT.
Since openQRM Enterprise works on a much lower
level of your IT we see "other" Cloud providers as "tools". Because of
this, those „tools“ needs a comprehensive management platform to
automate them to 100%. Therefore in openQRM public and private Cloud
provider are basically „just another resource type“ and we are happy to
integrate with them.
- Two physical Server - at least 1 GB of Memory
- at least 100 GB of Diskspace
- VT (Virtualization Technology) enabled in the Systems BIOS so that the openQRM Server and the OpenStack system can run Virtual Machines later
The automated OpenStack installation to bare-metal is only available in the openQRM Enterprise Edition >= 5.1.3! If you would like to test this feature please contact us for an openQRM Enterprise evaluation edition.
Install a e.g. minimal Debian on a physical Server.
Install and initialize openQRM
For this howto we have used the same openQRM server as for the howtos about 'Virtualization with KVM and openQRM on Debian' and 'Automated Amazon EC2 Cloud deployments with openQRM on Debian'. That means with this howto we are going to add functionality to an existing openQRM setup. This is to show that openQRM manages all different virtualization and deployment types seamlessly.
Successfully installed openQRM

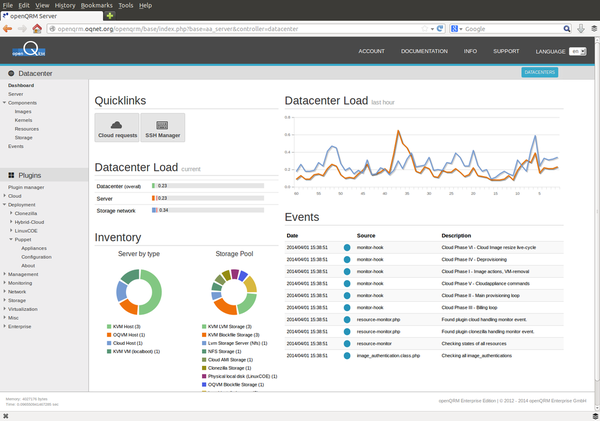

Here a screenshot of the openQRM dashboard after the successful installation. We are ready now to start the configuration for the automatic OpenStack installation.

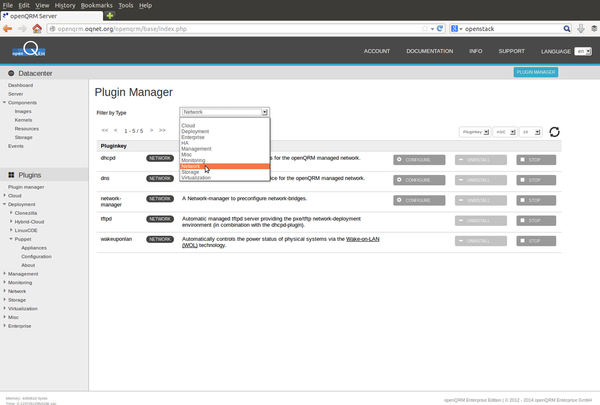

In the openQRM Plugin Manager please enable and start the following plugins in the sequence below:
- dns plugin - type Networking
- dhcpd plugin - type Networking
- tftpd plugin - type Networking
- network-manager plugin - type Networking
- local-server plugin - type Misc
- device-manager plugin - type Management
- novnc plugin - type Management
- sshterm plugin - type Management
- linuxcoe plugin - type Deployment
- puppet plugin - type Deployment
Hint: You can use the filter in the plugin list to find plugins by their type easily!
Enable PXE boot on the second system dedicated for OpenStack

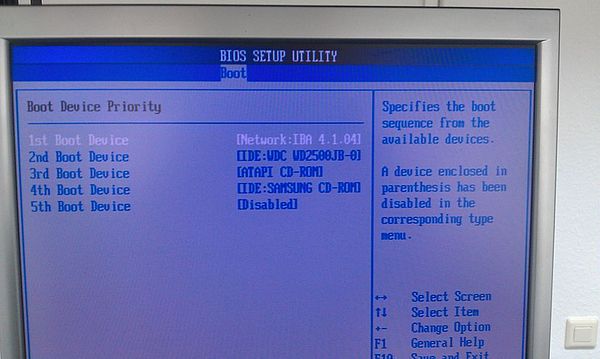

Set the second system dedicated for OpenStack to the following boot-sequence in the system bios:
- network-boot (PXE)
- boot from first harddrive
Save the bios settings and reboot

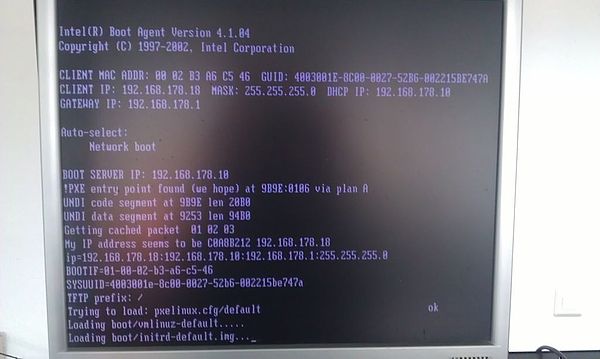

After the reboot the system now boots directly from the network-boot environment (dhcpd/tftp/pxe) by openQRM and integrates itself as new, "idle" (not in used) resource.

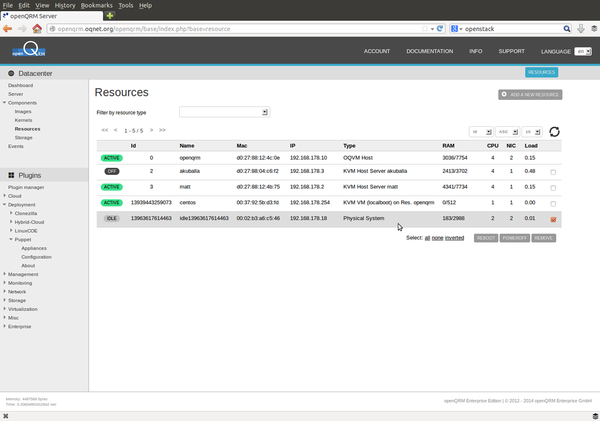

Herer the new resource in "idle" state. Idle means that the system is integrated and ready to be automatically managed by openQRM.
Setup an automatic-installation profile with LinuxCOE
Plugins -> Deployment -> LinuxCOE -> Create Templates

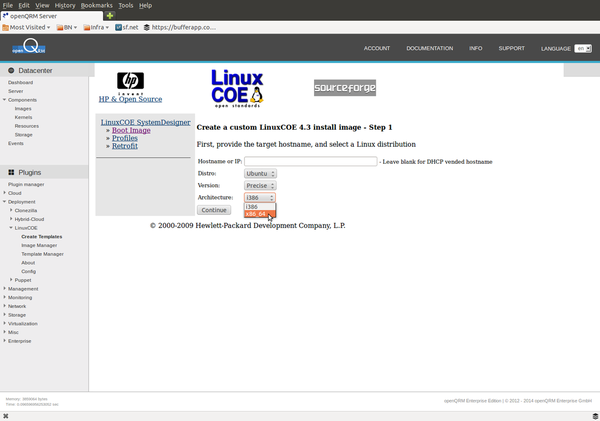

and select Ubuntu "Precise" (12.04 LTS) as the distribution version and X86_64 as the architecture. Then click on "continue.

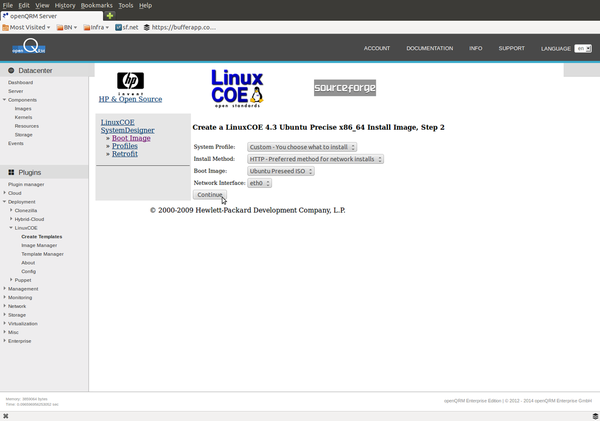

on the next page simply click on "continue"

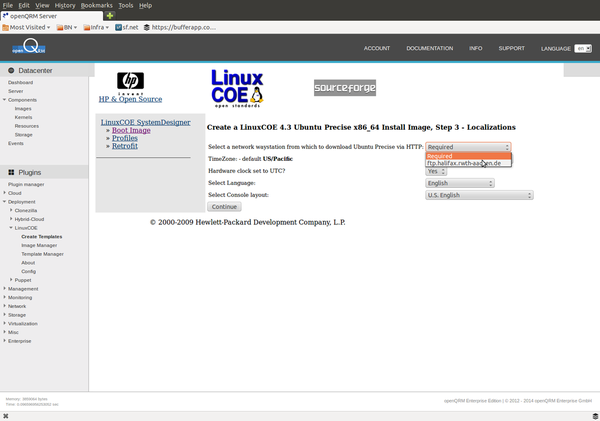

On the following page select the mirror from where you would like to install.
Please notice that you can add your own custom mirror intries in the LinuxCOE configuration easily at /usr/share/openqrm/plugins/linuxcoe/linuxcoe-sd/depots/apt-Ubuntu-Precise

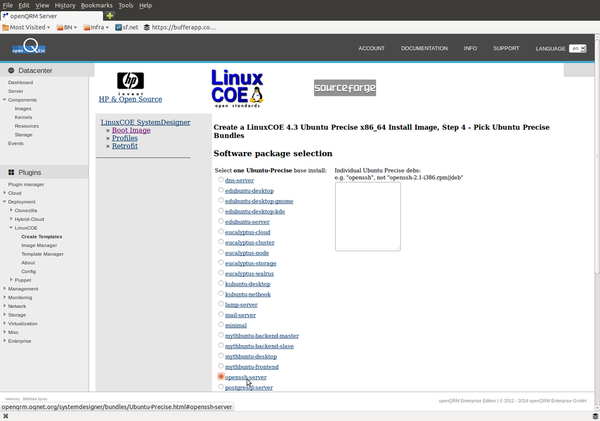

In the package selection please select only "openssh-server"

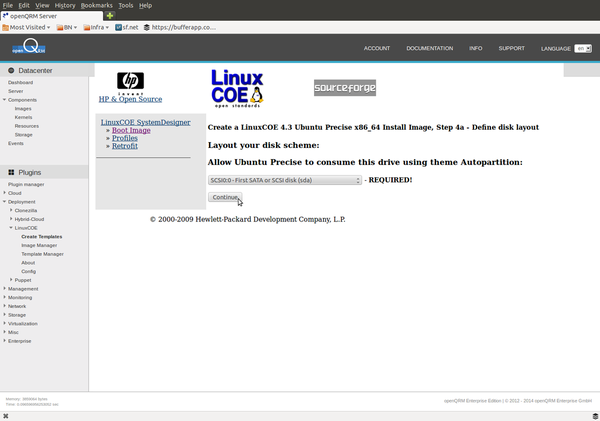

In the disk-layout screen please select /dev/sda

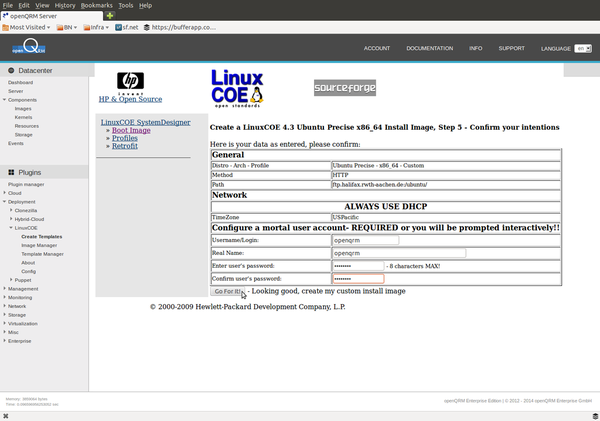

In the user configuration section please specify a username and password

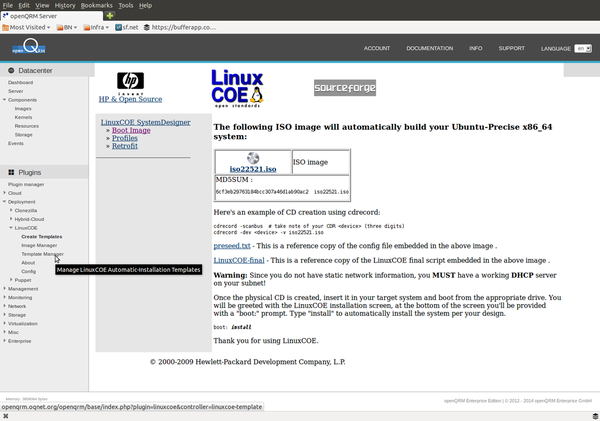

The final LinxCOE page presents the ready-baked iso image containing the automatic installation. No need to download it since openQRM is going to apply this automatic-installation profile by PXE/network-boot!
Instead go to
Plugins -> Deployment -> LinuxCOE -> Template Manager
which will automatically unpack the iso and its configuration items.

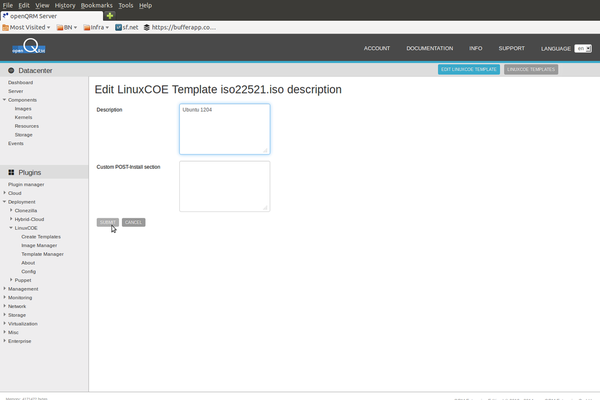

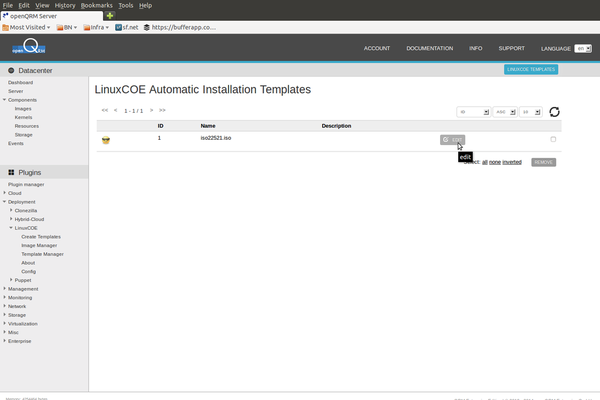

Please click on the "edit" action of the installation-template
Now insert "Ubuntu 1204" as the installation-template name and click on "submit".

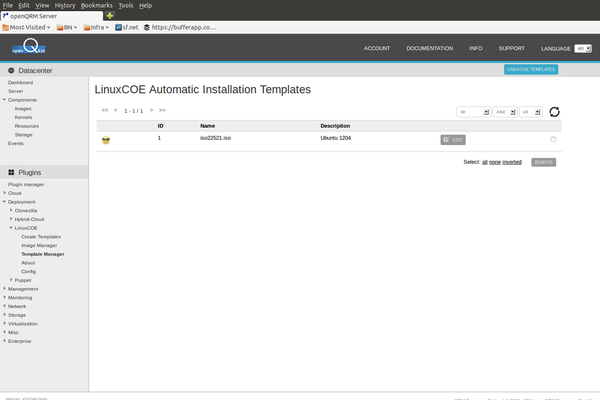

Here the installation-template list again with the profile named "Ubuntu 1204"
Next please go to

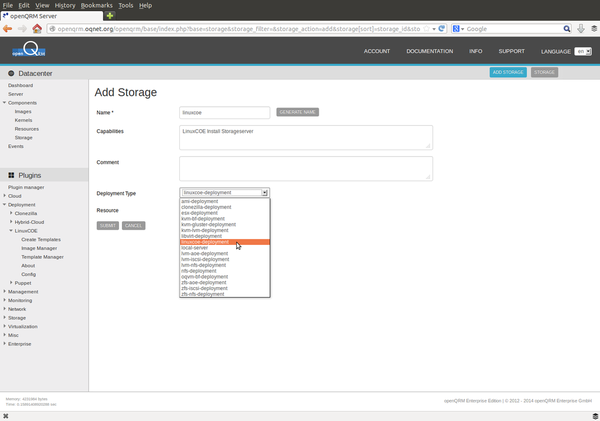

Datacenter -> Compontents -> Storage -> Add Storage
and add a new storage from the type "linuxcoe-deployment". Use the openQRM server resource for this new storage object.
Switch back to

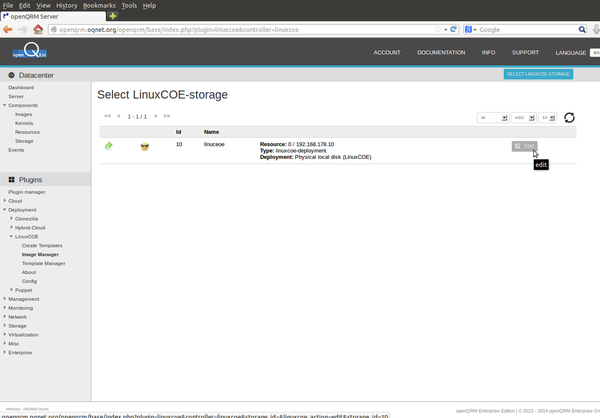

Plugins -> Deployment -> LinuxCOE -> Image Manager
and select the just created new LinuxCOE Storage.

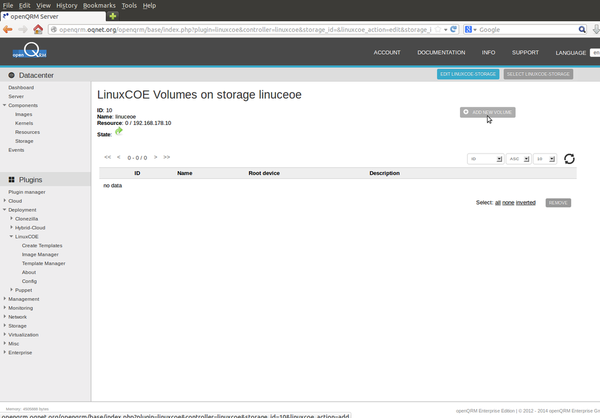

Click on "Add new Volume"

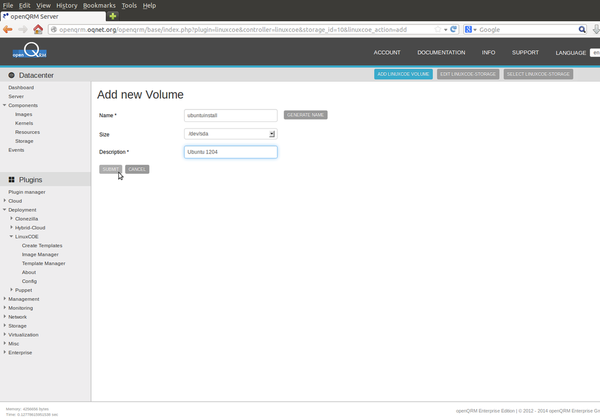

Name the new volume "ubuntuinstall", select /dev/sda and add "Ubuntu 1204" as the description. This will create the Image pointing to the target harddisk on the system which is going to be auto-installed.

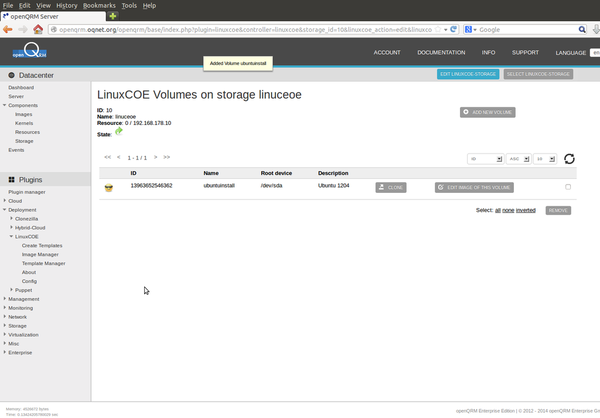

Adding the volume automatically adds a new Image object in openQRM. Here the LinuxCOE volume list after adding.
Creating a new server with an attached automatic installation-template
We now have all configuration items ready for the deployment. Please go to

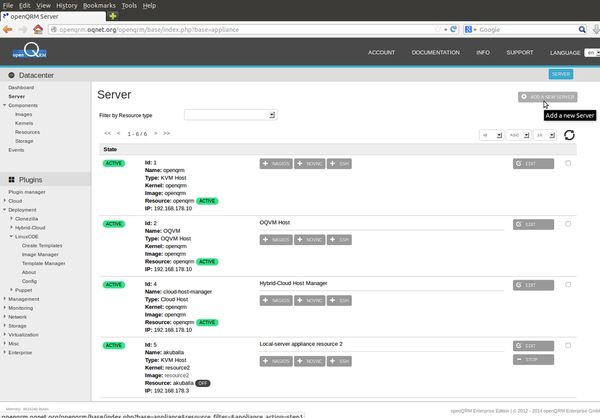

Datacenter -> Server

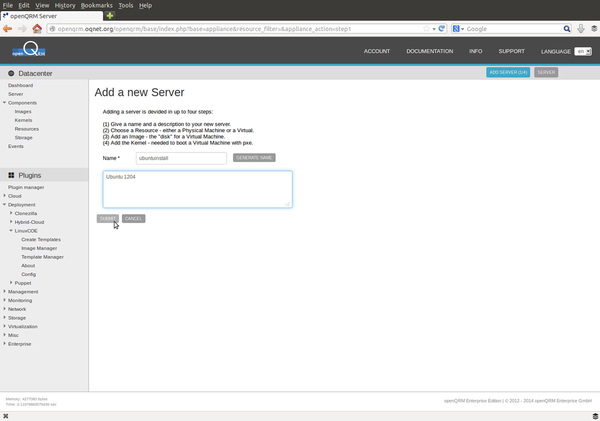

and click on "Add new server"
Provide "openstack" as the name and "Ubuntu 1204" as the description. Then click on "submit".

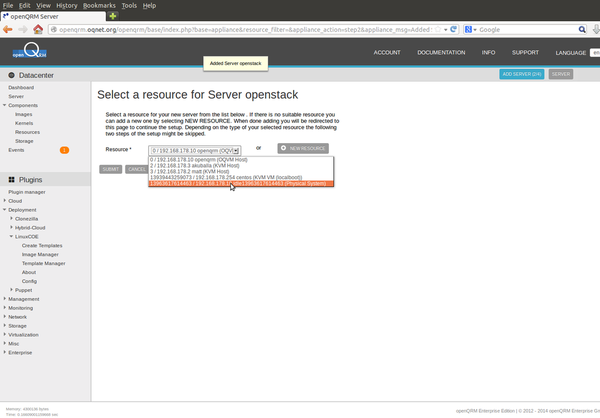

On the second page of the server wizard please select the resource of the just integrated, idle, bare-metal system dedicated for the OpenStack installation.

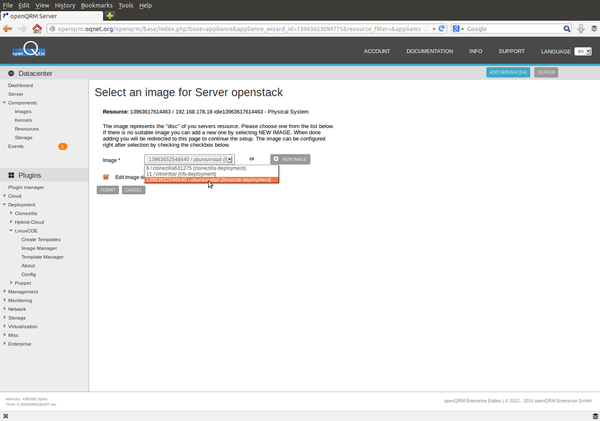

On the third page of the server wizard please select the just created "ubuntuinstall" LinuxCOE-deployment Image, enable the "Edit Image" checkbox and click on "submit".

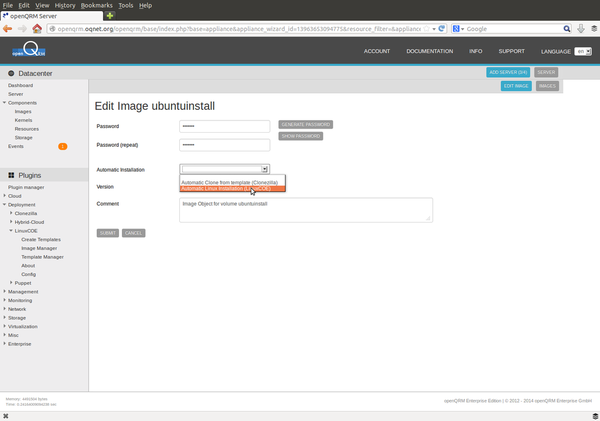

In the Image-Edit section please now attach the LinuxCOE installation-template to the Image. Optional you can reset the system password from the automatic installation by setting a custom one.

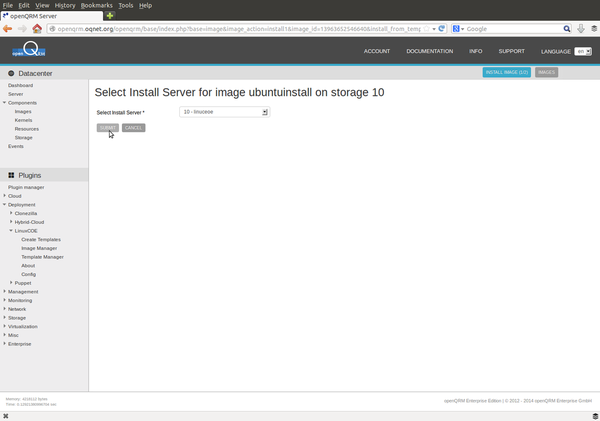

Now select the LinuxCOE storage

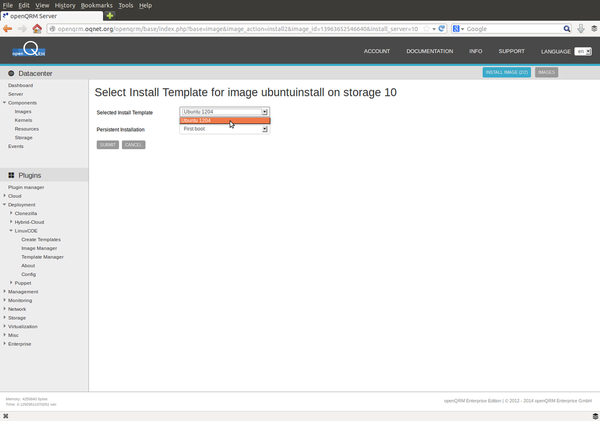

and on the next screen the "Ubuntu 1204" installation-template which is then attached to the Image. Please also make sure that the persistant installation is set to "first boot only".

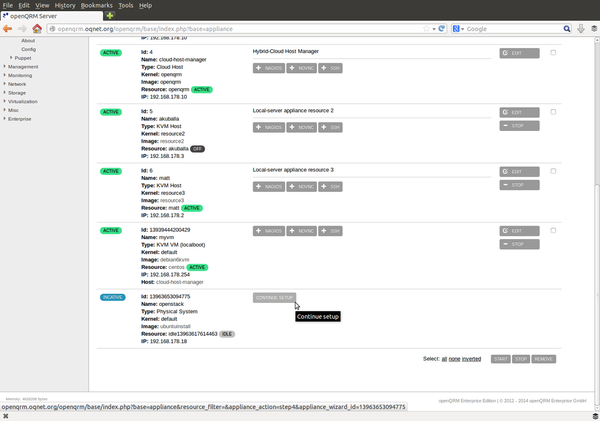

In the server list now please choos "continue setup" for the server openstack.

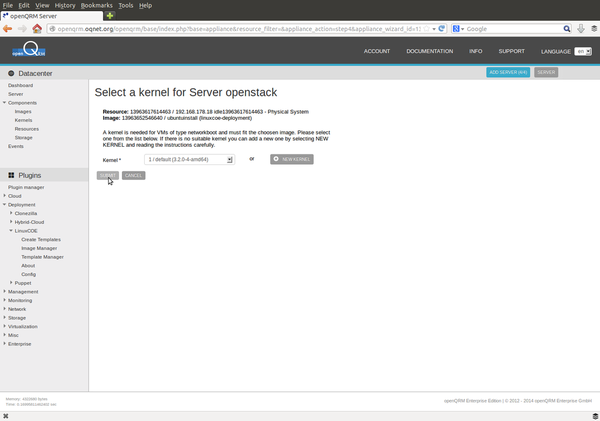

Back in the server wizard please select the "default" kernel for the server openstack.

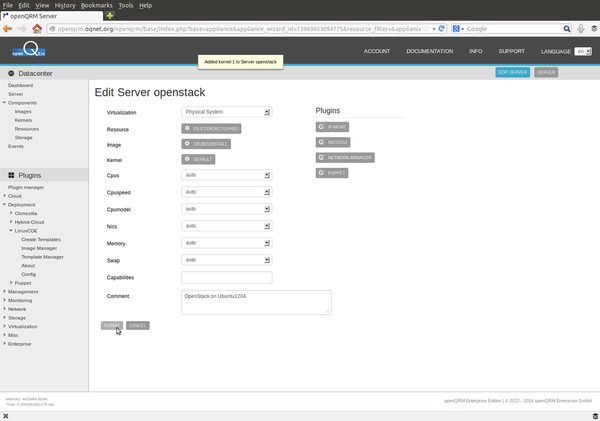

The server object is created so far. Here the Server-Edit section, the final screen of the wizard. Here we can now attach the Puppet recipe for the automated OpenStack installation on top of our automated operating system installation.
In the Server-Edit section please set your custom parameters for the automatic OpenStack installation in the server "capabilities" field. The parameters are the same as usef by DevStack.
e.g. for this howto we have used the following server capabilities configuration (all parameter in one line):
HOST_IP=126.96.36.199 FLOATING_RANGE=188.8.131.52/27 FIXED_RANGE=10.20.11.0/24 FLAT_INTERFACE=eth0 ADMIN_PASSWORD=password MYSQL_PASSWORD=password RABBIT_PASSWORD=password SERVICE_PASSWORD=password SERVICE_TOKEN=password

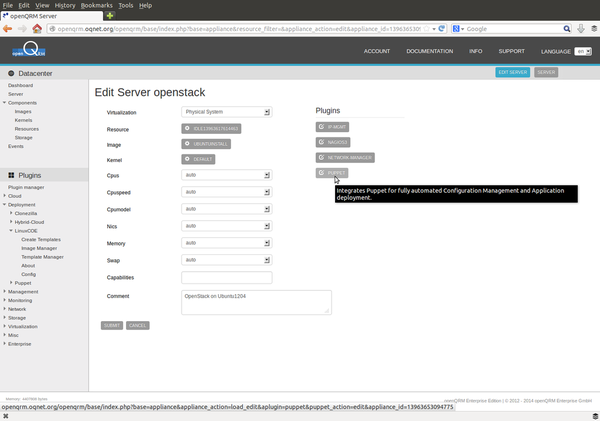

After setting the OpenStack configuration parameters in the server capabilities field please click on "submit" to save your changes. The go back to the Edit-Server screen and click on the Puppet item.

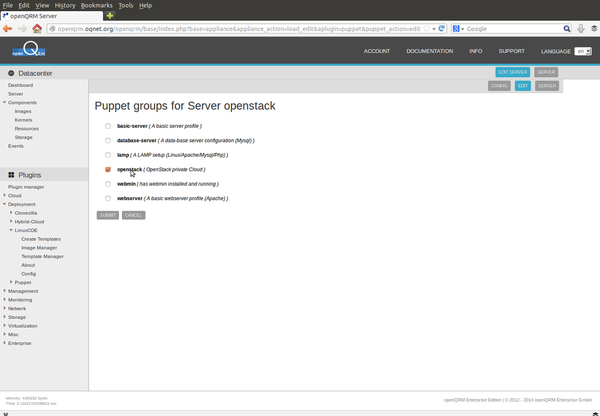

In the Puppet configuration for the server openstack please select the "OpenStack" recipe and click on "submit".
Starting the server
In the Server-List at
Datacenter -> Server

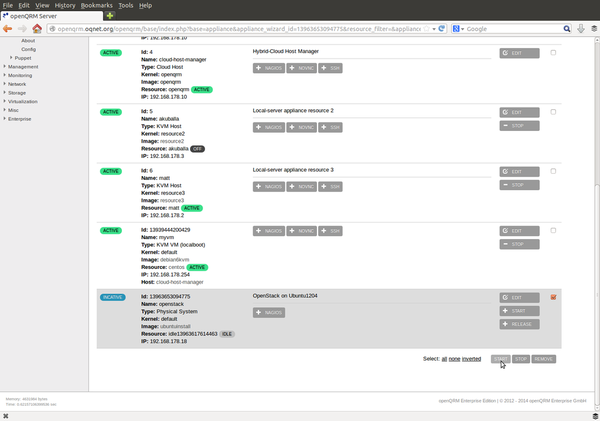

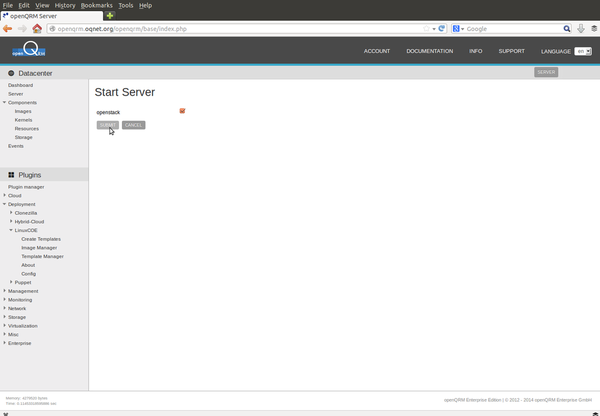

please select and start the server openstack.
Starting the server object now automatically:
- assigns the LinuxCOE instalation-template to the server on first boot
- triggers all other start actions of the server
- reboots the "idle" server resource
- PXE boots the resource assinged to LinuxCOE
- automatic installs the OS on the systems harddisk
- re-assigns the system to local-boot
- after the successful OS installation it reboots the system which then boots from the local disk
- install and start the openQRM-Client (comparable to the "cloud-init" scripts for Amazon EC2 or OpenStack) on the installled system
- by starting the openqrm-client the system automatically fetches the plugin-boot-services from the openQRM server
- the Puppet-boot-service then automatically installs Puppet on the system and runs the configured OpenStack-installation recipe.

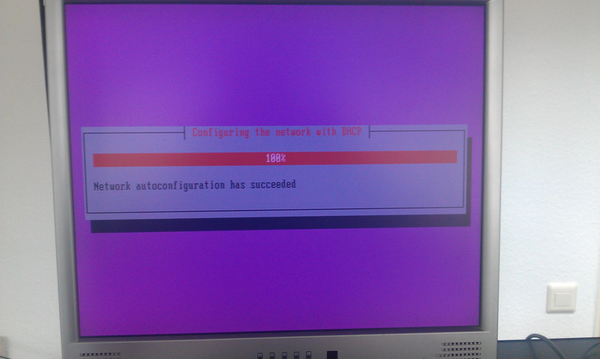

Here a screenshot of the system in the automatic LinuxCOE installation phase.

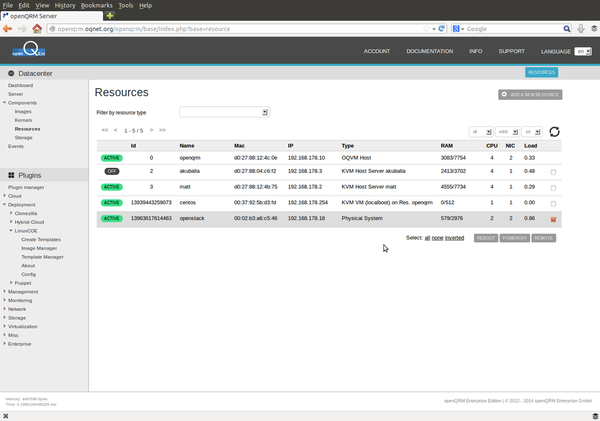

Here the resource overview in openQRM after the successful and fully automatic installation of the system dedicated for OpenStack.

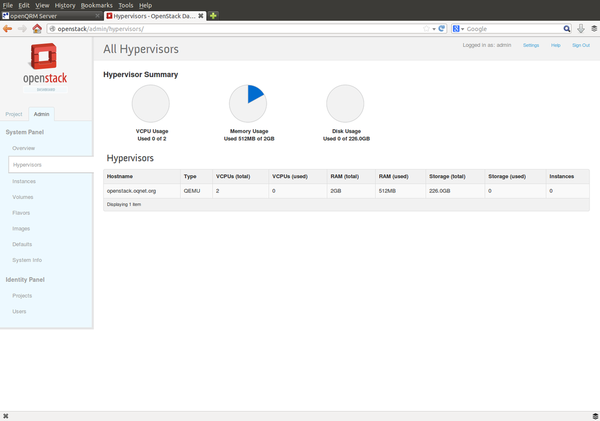

And finally here a screenshot of the second system after the fully automatic OpenStack installation triggered by the Puppet recipe.
You have successfully made it through this howto!
Another openQRM documentation sponsored by openQRM Enterprise
We hope you have enjoyed it!
Your openQRM Enterprise Team
